Many people buy a USB cable by checking whether the connector fits. Yet cables with the same USB-C plugs can have very different capabilities: one may charge a laptop, another may transfer files slowly, and another may not connect a display at all.
What makes them different? This guide explains the key specifications first, then shows how to match a cable to your needs.
1. Start Here: Five Different Specifications
| Specification | Example | What it tells you | What it does not guarantee |
|---|---|---|---|
| Connector | USB-A, USB-C, Lightning | What plugs into the charger or device | Charging power, data speed or video support |
| Charging protocol | PD, PPS, QC | How compatible equipment negotiates power | A particular data rate or video capability |
| Power rating | 60W, 100W, 240W | The cable’s rated power capability under specified conditions | Fast file transfer or video output |
| Data rate | 480Mbps, 5Gbps, 10Gbps | The supported data signalling rate | A particular charging wattage or display mode |
| Video support | DisplayPort Alt Mode | Whether a compatible connection can carry display signals | The cable’s charging power or every display mode |
A connector’s shape does not tell you all its capabilities. USB-C is not another name for PD, high-speed data or video output. USB-IF explains the distinction.
2. USB-A, USB-C and Lightning: The Physical Connection

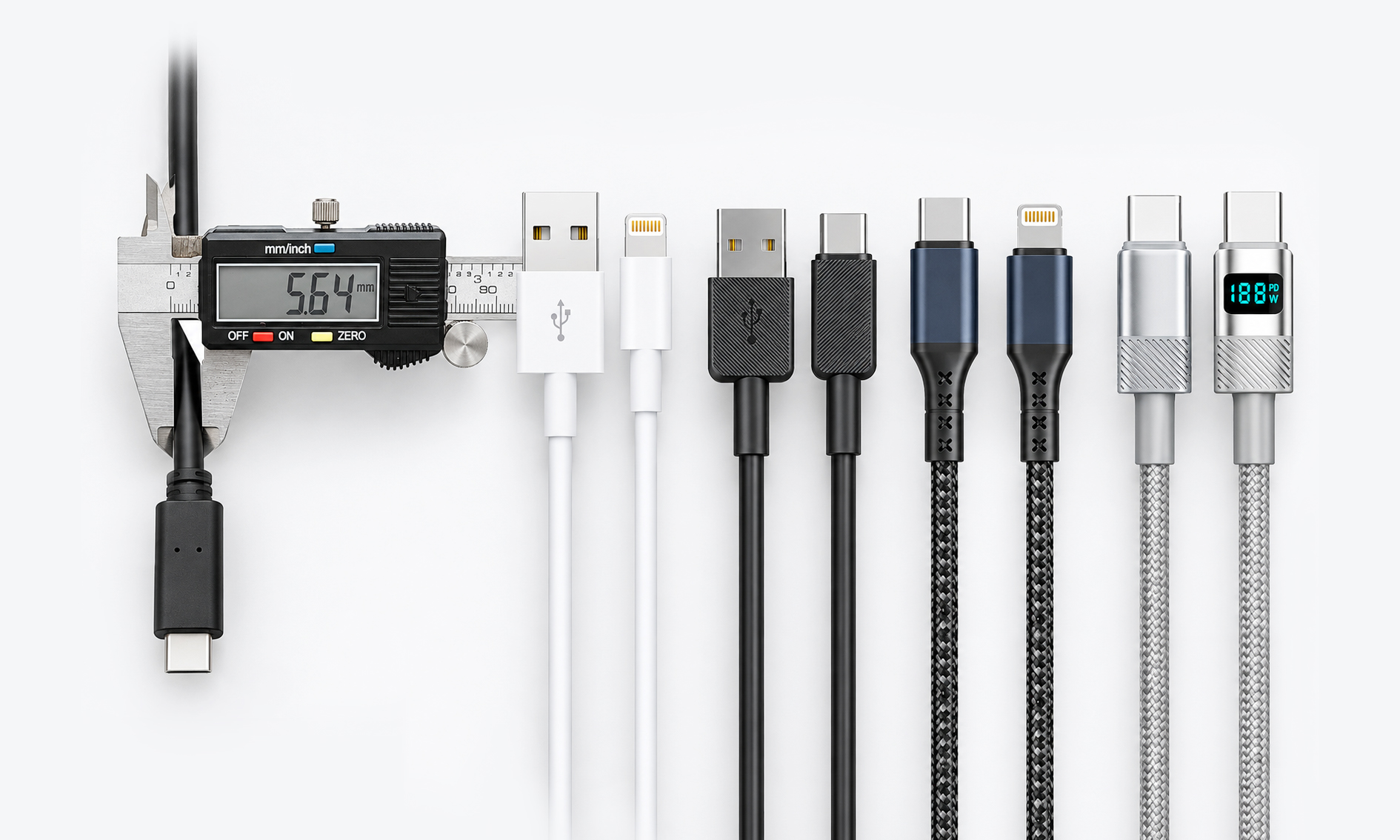

| Connector | How to recognise it | Common role |
|---|---|---|
| USB-A | The familiar rectangular USB plug | Charger and computer connections |
| USB-C | A small, rounded, reversible plug | Phones, tablets, laptops and accessories |
| Lightning | Apple’s slim, reversible connector | Devices equipped with a Lightning port |
Micro USB: Common on older devices and some accessories, mainly for charging and basic data transfer. Check the device and cable specifications for supported charging modes.
Cable names describe both ends. A to C means USB-A to USB-C; C to C means USB-C at both ends; C to L means USB-C to Lightning.
These names describe the connection, not a guaranteed charging speed, data rate or video capability.
3. PD, PPS and QC: The Fast-Charging Conversation
The charger and device must agree on a supported charging mode. A cable must also provide the required connections and electrical capability.
| Technology | Plain-English explanation |
|---|---|
| USB PD | A USB power standard used across phones, tablets and laptops |
| PPS | An optional PD feature that adjusts supply voltage and current limits in small steps |
| QC 2.0 and QC 3.0 | Qualcomm fast-charging technologies; QC 2.0 uses fixed voltage levels, while QC 3.0 adjusts voltage in finer steps |
Supports PD does not automatically mean supports PPS. Likewise, a QC label alone does not specify one universal wattage. Check the supported charging modes of the actual charger and device. USB-IF’s PPS introduction and Qualcomm’s QC 3.0 overview explain these features.
4. V, A and W: Understanding Cable Power
- V — volts: the supply voltage.
- A — amps: the current flowing through the connection.
- W — watts: power, calculated as voltage multiplied by current.
Power (W) = Voltage (V) × Current (A)

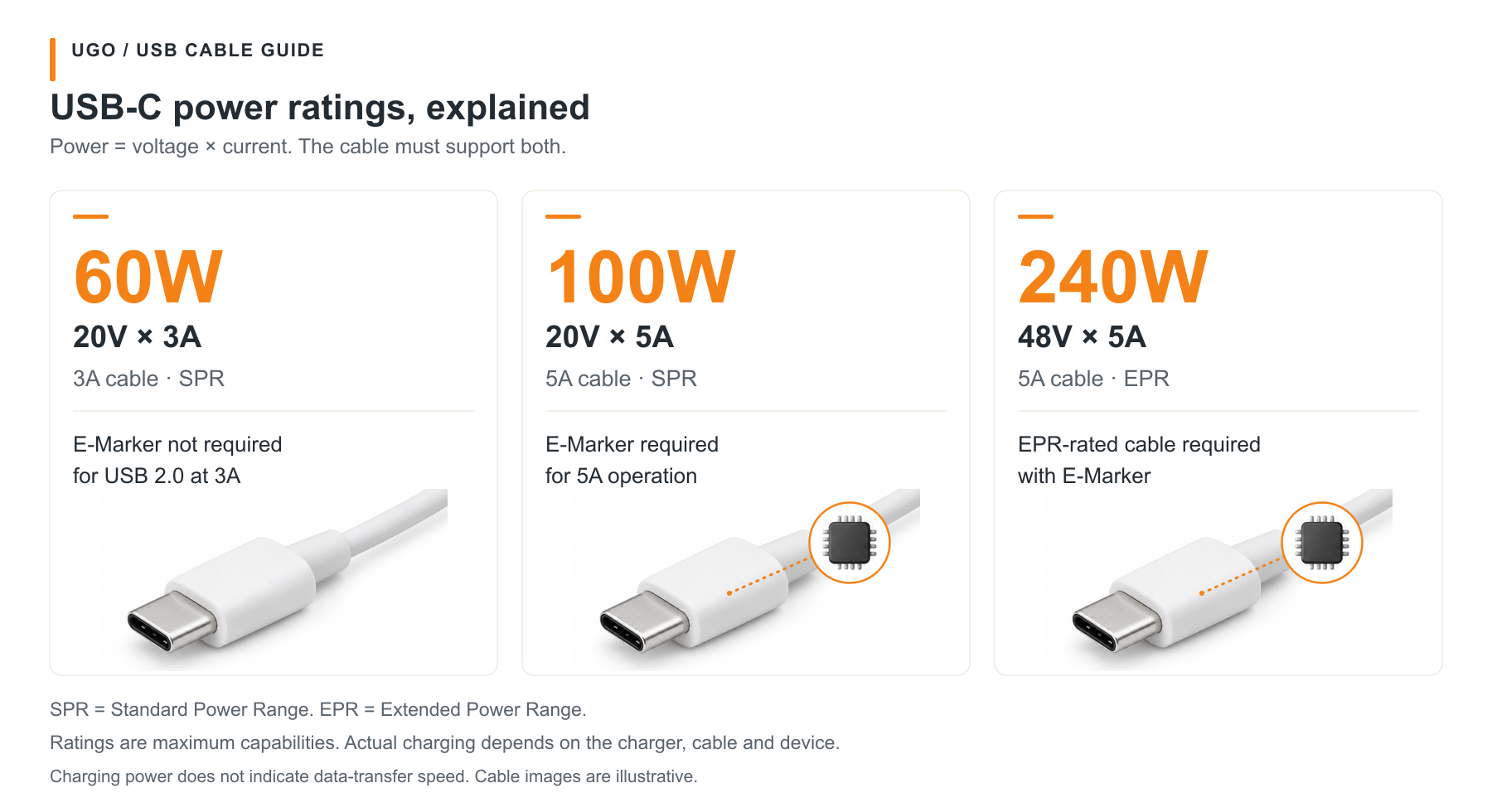

| USB-C to USB-C cable rating | Example operating point | Important detail |
|---|---|---|
| 60W, 3A | 20V × 3A = 60W | A common charging-cable category |
| 100W, 5A SPR | 20V × 5A = 100W | Requires 5A capability and electronic marking |
| 240W, 5A EPR | 48V × 5A = 240W | Requires an EPR-rated cable and compatible equipment |

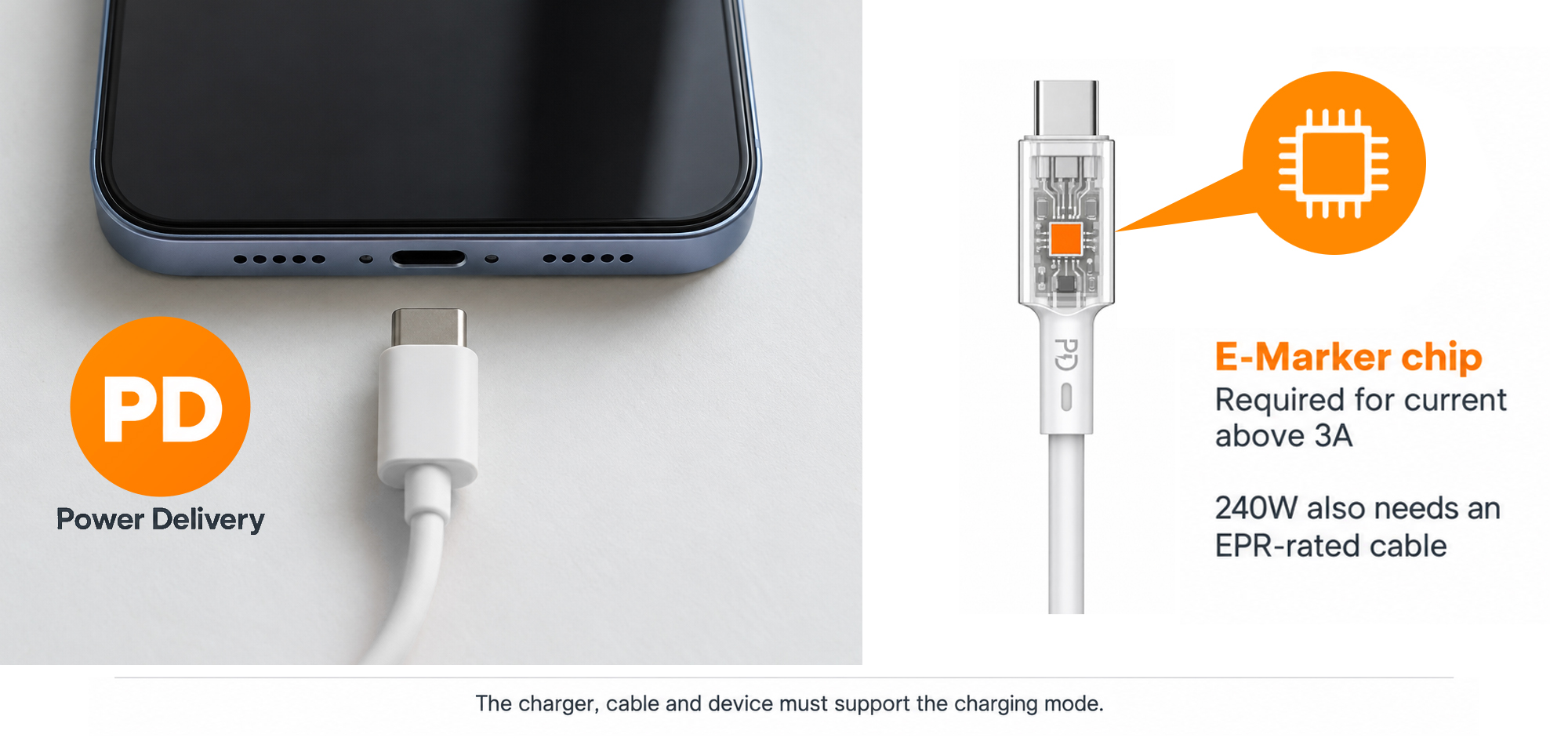

An E-Marker is a chip that identifies a USB-C cable’s capabilities. Standard USB-C cables carrying more than 3A need electronic marking. An ordinary USB 2.0, 3A cable can work without it; having a chip does not by itself prove 240W capability. Infineon’s electronic-marking guide
Current matters even below 60W: 65W at 20V needs 3.25A, and some 45W PPS modes also exceed 3A. These require a 5A cable. A 100W cable does not automatically support the higher voltages used by EPR. USB-IF’s PD overview
A higher-rated cable does not force extra power into a phone. Actual charging depends on the charger, cable and device, as well as battery level and temperature.
5. Data Speed: Fast Charging Does Not Mean Fast File Transfer
A cable can support high charging power while offering only USB 2.0 data. Look for a separate data-rate specification.
| Example data marking | Rated signalling speed | What to remember |
|---|---|---|
| USB 2.0 | Up to 480Mbps | Can be sufficient for basic syncing, but slower for large files |
| USB 5Gbps | Up to 5Gbps | Requires compatible ports and devices |
| USB 10Gbps | Up to 10Gbps | The whole connection must support the rate |
These are examples, not a complete list of USB speeds. Mbps and Gbps measure data, not charging power. Actual file-transfer speeds are lower than signalling rates and also depend on the devices and storage. USB-IF’s cable labelling guidance treats power and data capability separately.
Charging-focused is not the same as charge-only. A charging-focused cable may still transfer USB 2.0 data; a deliberately charge-only or data-blocking cable may not transfer files at all. Check the stated function, not just the product name.
Mbps is not MB/s: 480Mbps equals 60MB/s before protocol overhead. Real file-copy speeds are lower, so compare like-for-like units.
6. Conductor Specs: What Is Inside the Cable?

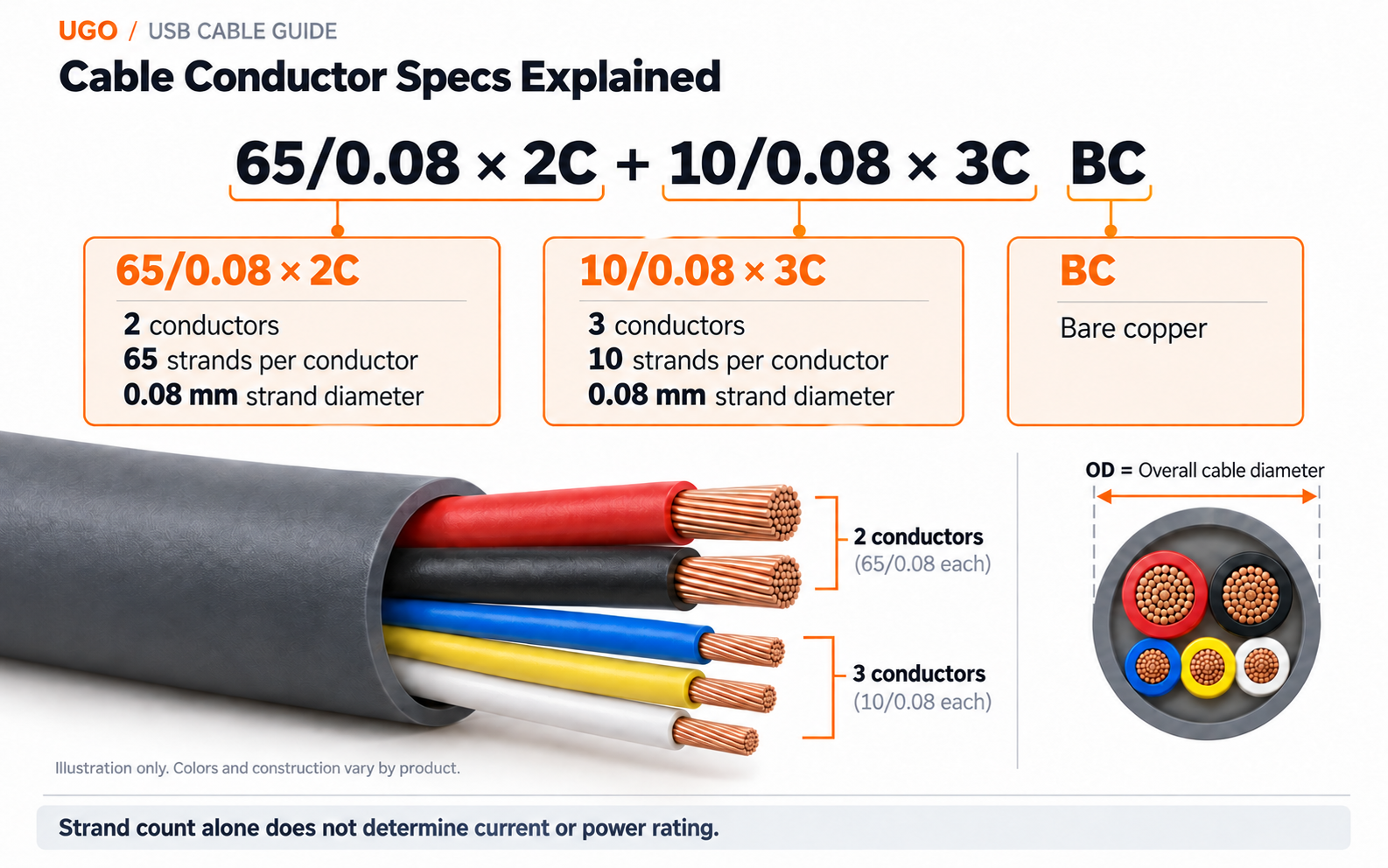

For a more detailed specification, you may see 65/0.08 × 2C + 10/0.08 × 3C BC.
| Marking | Meaning |
|---|---|
| 65/0.08 × 2C | Two conductors, each containing 65 strands of 0.08mm wire |
| 10/0.08 × 3C | Three additional conductors, each containing 10 strands of 0.08mm wire |
| BC | Bare copper; TC means tinned copper |
OD means overall cable diameter, not copper-strand diameter. Strand count alone cannot establish current or power capability: conductor material, strand diameter, cable length, connectors and assembly quality also matter.
Common Conductor Materials
| Material | Construction | Main characteristics |
|---|---|---|
| BC — Bare copper | Unplated copper | Low resistance and good flexibility. The exposed copper surface can oxidise. |
| TC — Tinned copper | Copper with a thin tin coating | Conductivity close to bare copper, with added corrosion protection and easier soldering. |
| CCA — Copper-clad aluminium | Aluminium core with a copper outer layer | Lighter and often lower-cost, but higher DC resistance than copper at the same length and cross-section. |
| CCS — Copper-clad steel | Steel core with a copper outer layer | High tensile strength, but much higher DC resistance than copper. Often used for specialised signal applications. |
For USB charging, prefer BC or TC power conductors. TC is useful where corrosion resistance or soldering matters. CCA and CCS are not equivalent drop-in replacements for copper at the same conductor size. “Bare” means the copper is unplated, not that the cable has no insulation.
How Material Affects Power
At the same current, length and conductor cross-section, higher resistance means more heat (loss = I²R) and greater voltage drop (drop = IR). Material alone does not determine a wattage: conductor size, length, connectors, insulation and the complete cable design also matter. Ask for the rated current and supporting test results rather than applying a fixed percentage to copper ratings.
Material references: copper and tin coatings, CCA construction, and CCS characteristics.

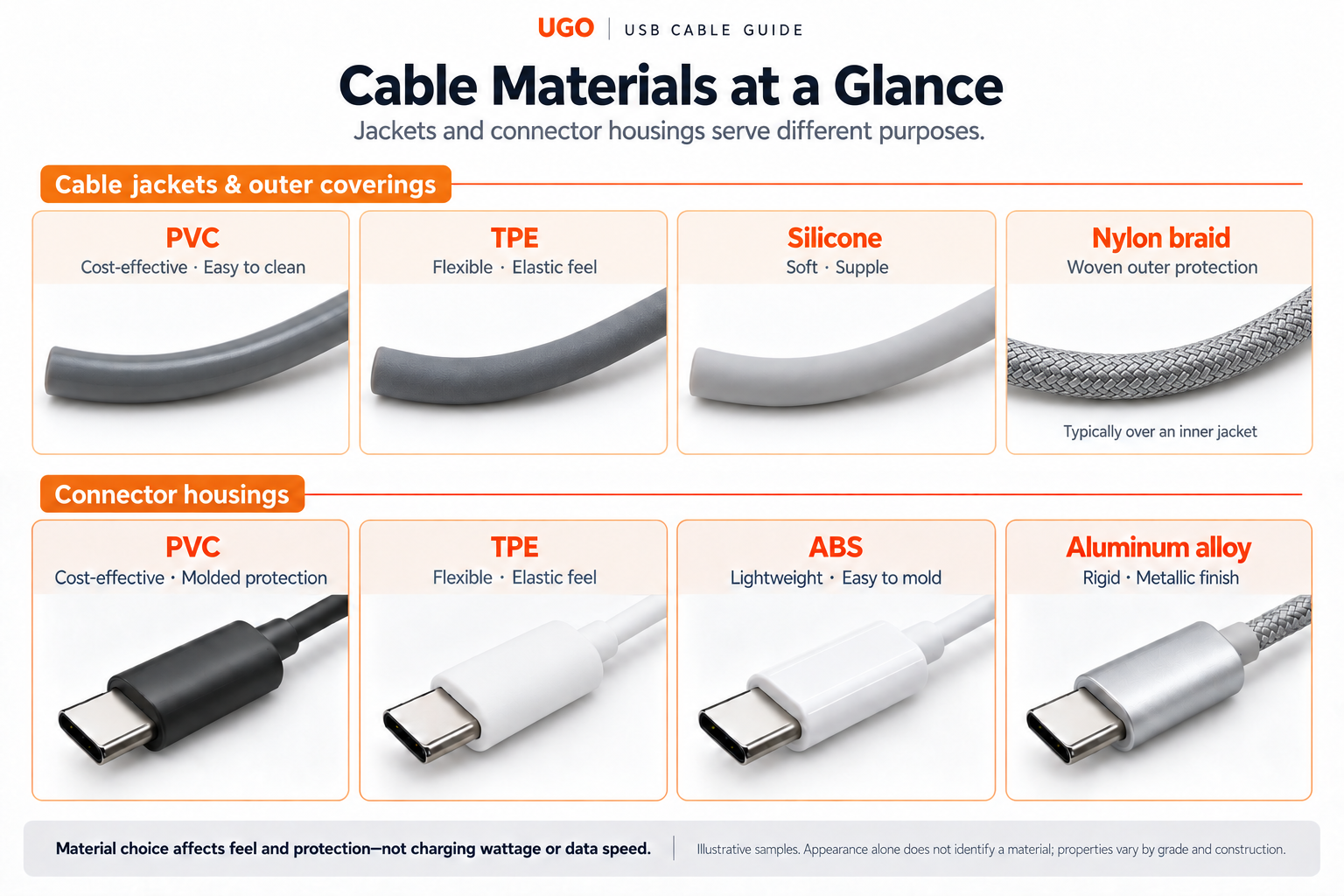

7. Cable Jackets and Connector Housings: Feel and Protection
The jacket covers the cable body; the connector housing surrounds the plug assembly. These materials affect handling and protection, but do not establish charging power or data speed.
Common Cable Jackets and Outer Coverings
| Material | Typical characteristics | What to keep in mind |
|---|---|---|
| PVC | Cost-effective, with a smooth surface that is easy to clean. | Flexibility and temperature performance depend on the formulation. |
| TPE | Flexible, with an elastic, rubber-like feel. | TPE covers a family of materials; wear resistance and softness vary by grade. |
| Silicone | Soft and supple, with good flexibility over a broad temperature range. | Resistance to cuts, tearing and surface dirt depends on the grade and finish. |
| Nylon braid | A woven outer layer that provides additional surface protection. | Usually covers an inner jacket. Weave and construction affect stiffness and wear. |
Common Connector Housing Materials
| Material | Typical characteristics | What to keep in mind |
|---|---|---|
| PVC | Economical molded protection around the plug assembly. | Often used as an overmold; flexibility depends on the formulation. |
| TPE | A flexible overmold with an elastic feel. | A soft exterior alone does not prove bend durability. |
| ABS | A lightweight rigid plastic, easy to mold into different housing shapes. | Impact and heat performance depend on the material grade and design. |
| Aluminum alloy | A rigid metal shell with a metallic finish. | A metal shell alone does not prove better shielding, higher wattage or longer life. |
Choose for the way you use the cable: TPE or silicone can suit a preference for softness; a nylon braid adds woven surface protection; PVC can be a practical economical option. For durability, check the complete cable design and relevant bend, pull and abrasion test results.
Material names are not performance ratings. Check charging current, power, data rate and protocol compatibility separately. Appearance alone cannot reliably distinguish PVC, TPE or ABS.
Material references: LAPP jacket material guide and INEOS ABS material overview.
8. Put the Specifications Together
| Your task | What to check |
|---|---|
| Fast-charge a phone | Connector type, PD/PPS or QC compatibility, and required current |
| Charge a laptop at 65W using 20V | A suitable 5A electronically marked C-to-C cable and matching charger |
| Transfer large files | The cable’s data rate, both device ports and storage performance |
| Connect a monitor | Video support across the source, cable and display or adapter, plus resolution and refresh rate |
Start with the connection, then check charging, data and video separately.
Length and Compatibility Matter
- Choose the required length: longer cables can increase voltage drop and make high-speed signal transmission more demanding. Confirm the power, data and video ratings for that exact length.
- Check active cables carefully: built-in electronics can help maintain signals over longer runs, but do not assume every USB mode is supported. Follow any source/device direction labels.
- Use a known-compatible cable as a reference: if a replacement stops a feature working, compare it with the cable supplied or recommended for that equipment.
For actual model comparisons, see our CBA013–CBA016 cable buyer’s guide. For a sourcing enquiry, send UGO your connector, charging, data and video requirements, along with cable length and quantity.
